AX1800 Dual Band Gigabit AP_U7621-08

分类

Highlight Features

  • Dual-core MIPS1004K(880MHz)
  • Low Cost Wi-Fi 6 AX1800 platform
  • Optional LTE /5G application

Contact us for the stock and customized requirements!

Product Details:

Specifications

Chipset CPU: MTK MT7621A dual-core MIPS1004K (880MHz)

WIFI6: MTK7975D+MTK7905D

System Memory Default DDR3 256Mbyte
Nor Flash Default 16Mbyte
Wireless  MU-MIMO 802.11a/b/g/n/ac/ax WiFi6

2.4GHz 2T2R 573.5Mbps, B mode@20dBm (Max)

5.8GHz 2T2R 1201Mbps, A mode@19dBm (Max)

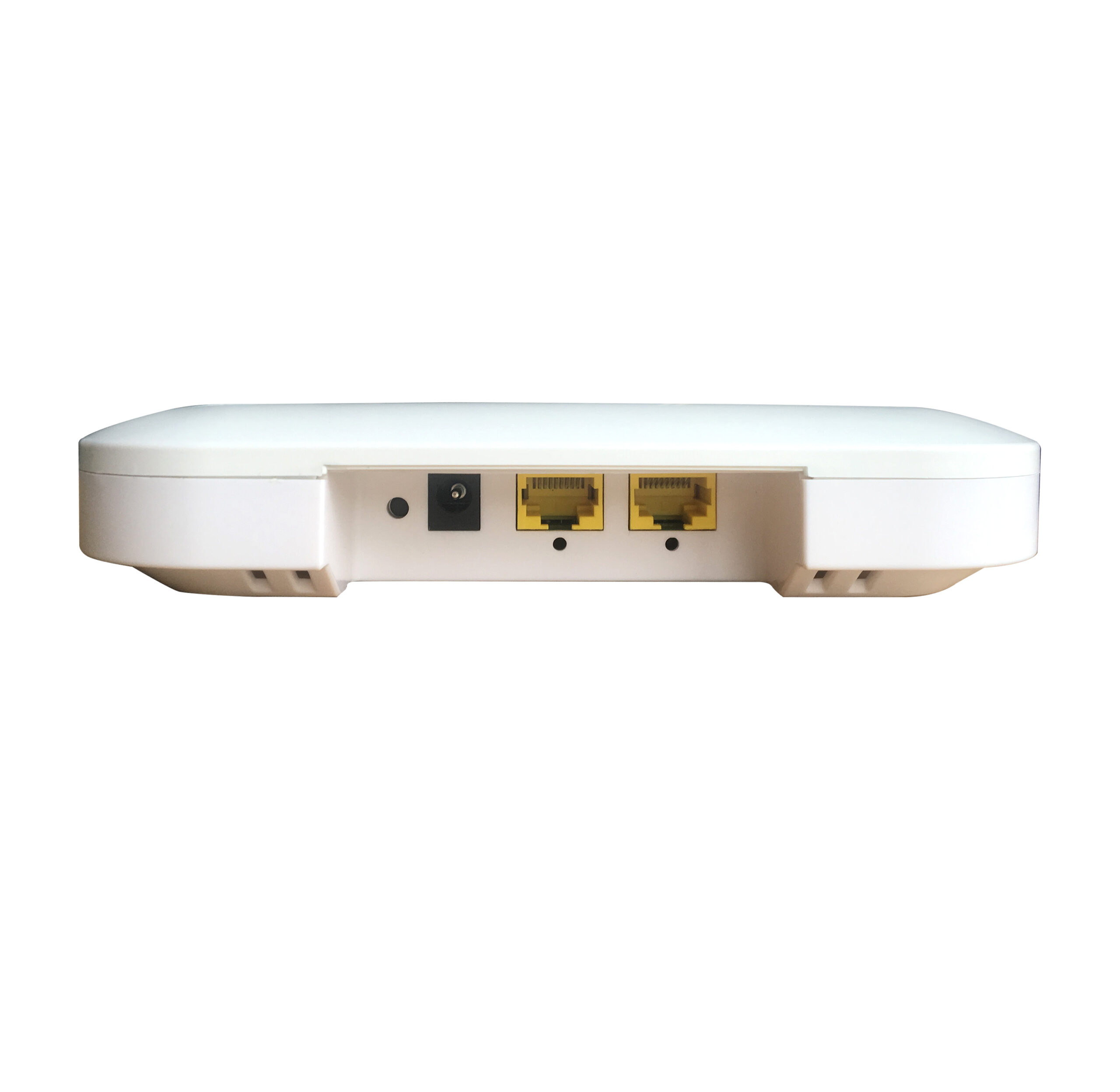

Wired Interface 1* WAN Giga Ethernet RJ45 Port with POE PD(Support 802.3at & af standard)

1* LAN Giga Ethernet RJ45 Port

Reset Button 1x Factory Restore Button (GPIO)
DC Power 1x DC Jack Connector (Default 12V@1A)
Power Consumption 10 W(Max)
Software MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain
Environmental Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

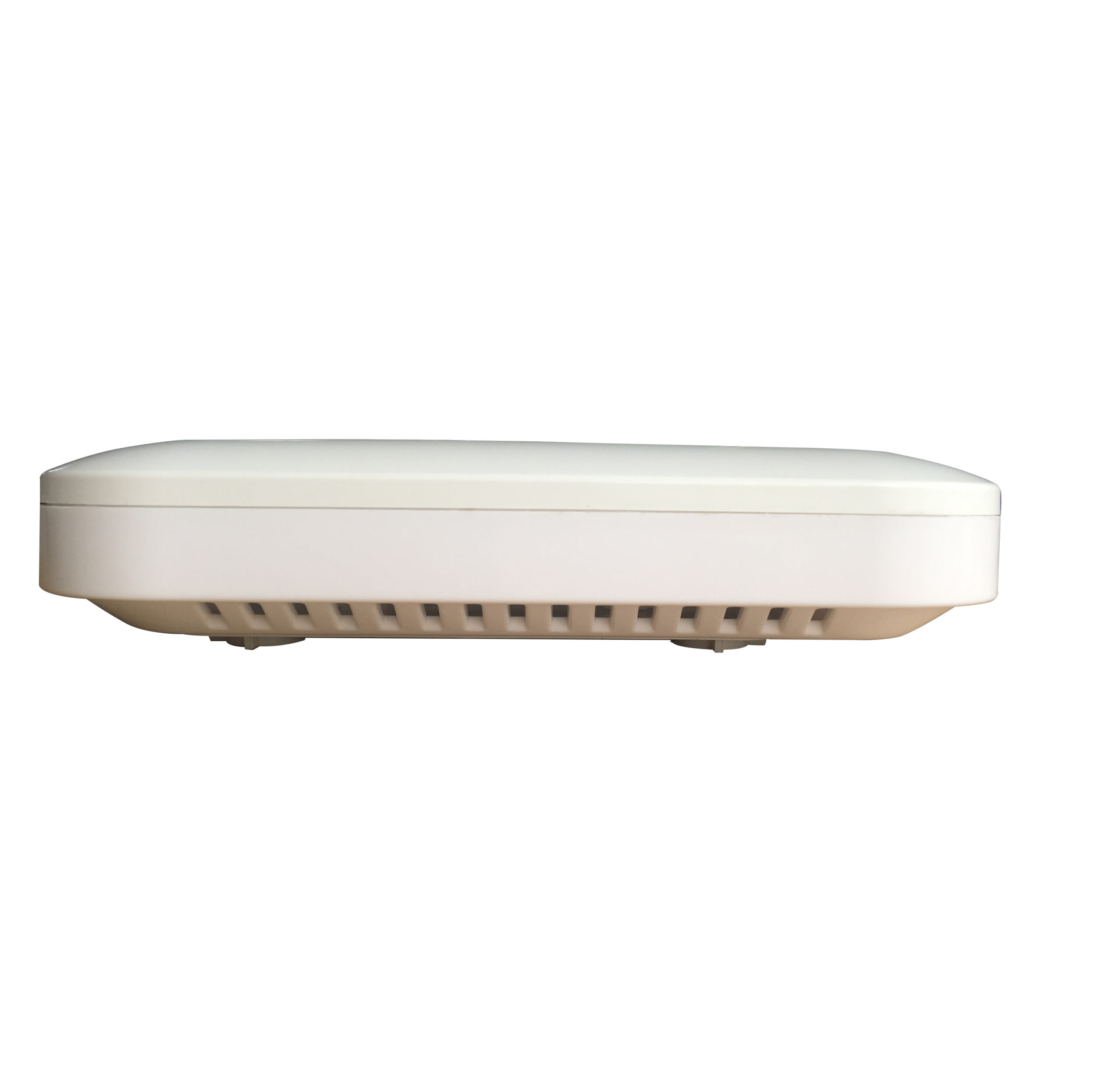

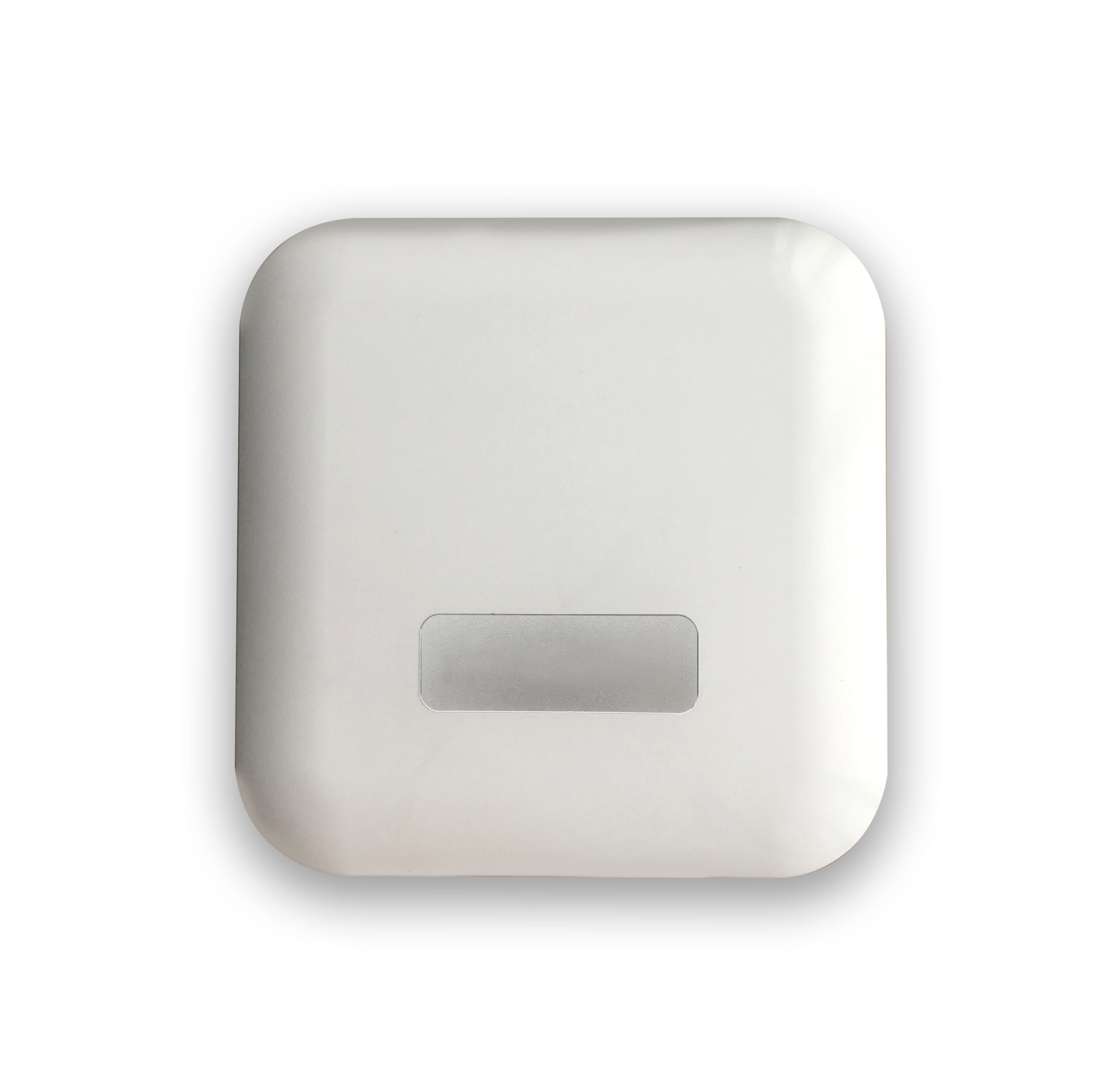

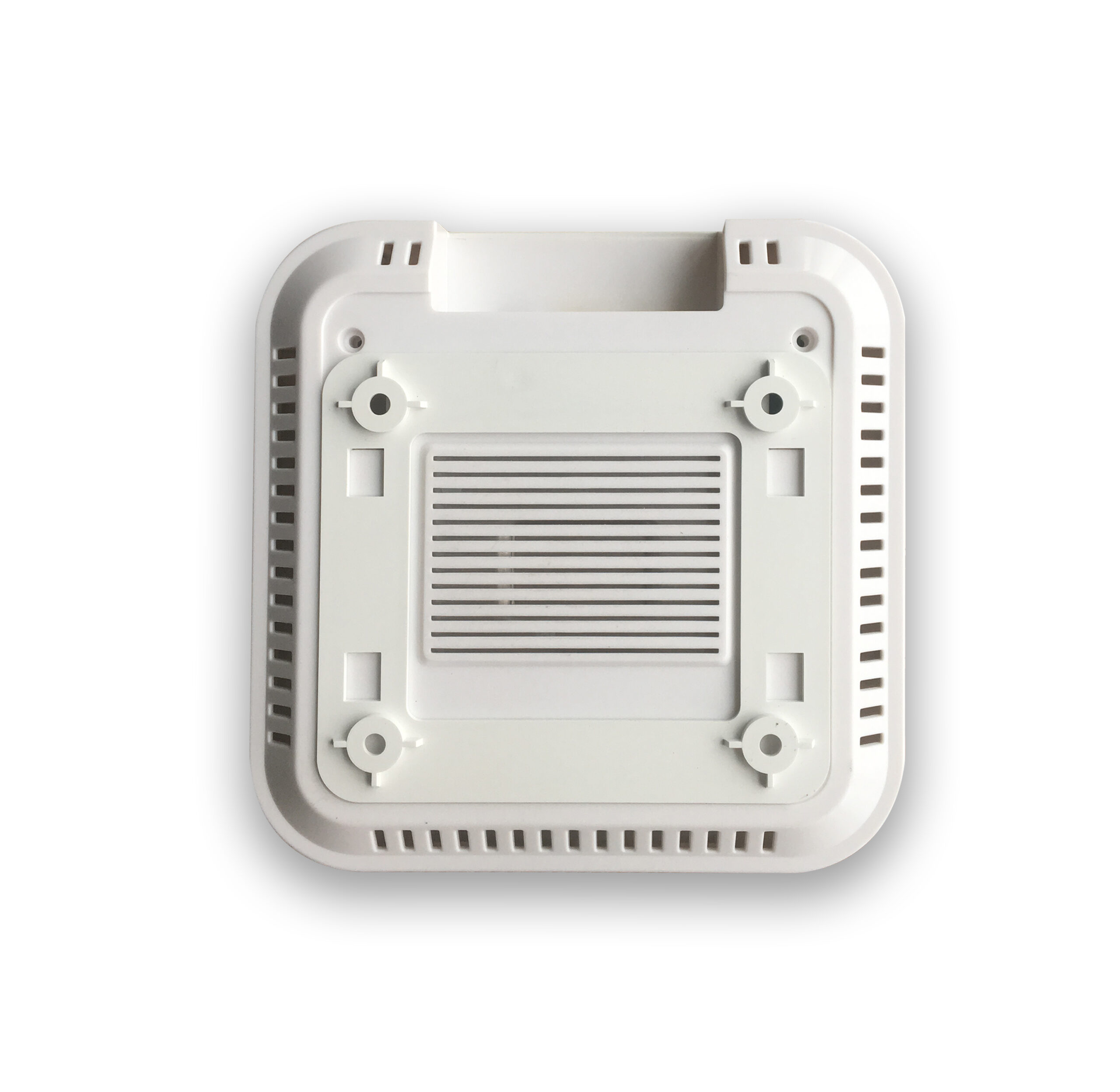

Case Material: Plastic Dimensions: 168x168x40mm (±2mm)

MT7621A Block Diagram

Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name Customization Comments Uiotin Customization
Memory Change to 512Mbyte DDR3 Supported
Nor Flash Change to 8/32/64Mbyte Supported
4G/5G Module Select the right M2 4G/5G module for your application Supported
Case Select the different case material for your application Supported

Ordering Information

Models Comments
U7621-08 16Mbyte Nor Flash and 256Mbyte DDR3 RAM

we are Manufacturer & Network Solution Supplier

Uiotin is supplying custom services for OEM/ODM products.

 we can customized total production including the chassis, hardware, software and  the mass prodcution ones.

For further cooperation please send email to sales@unielecinc.com, thanks!
