U7621
AX3000 Dual Band Gigabit Wi-Fi 6 Router_U5018-01

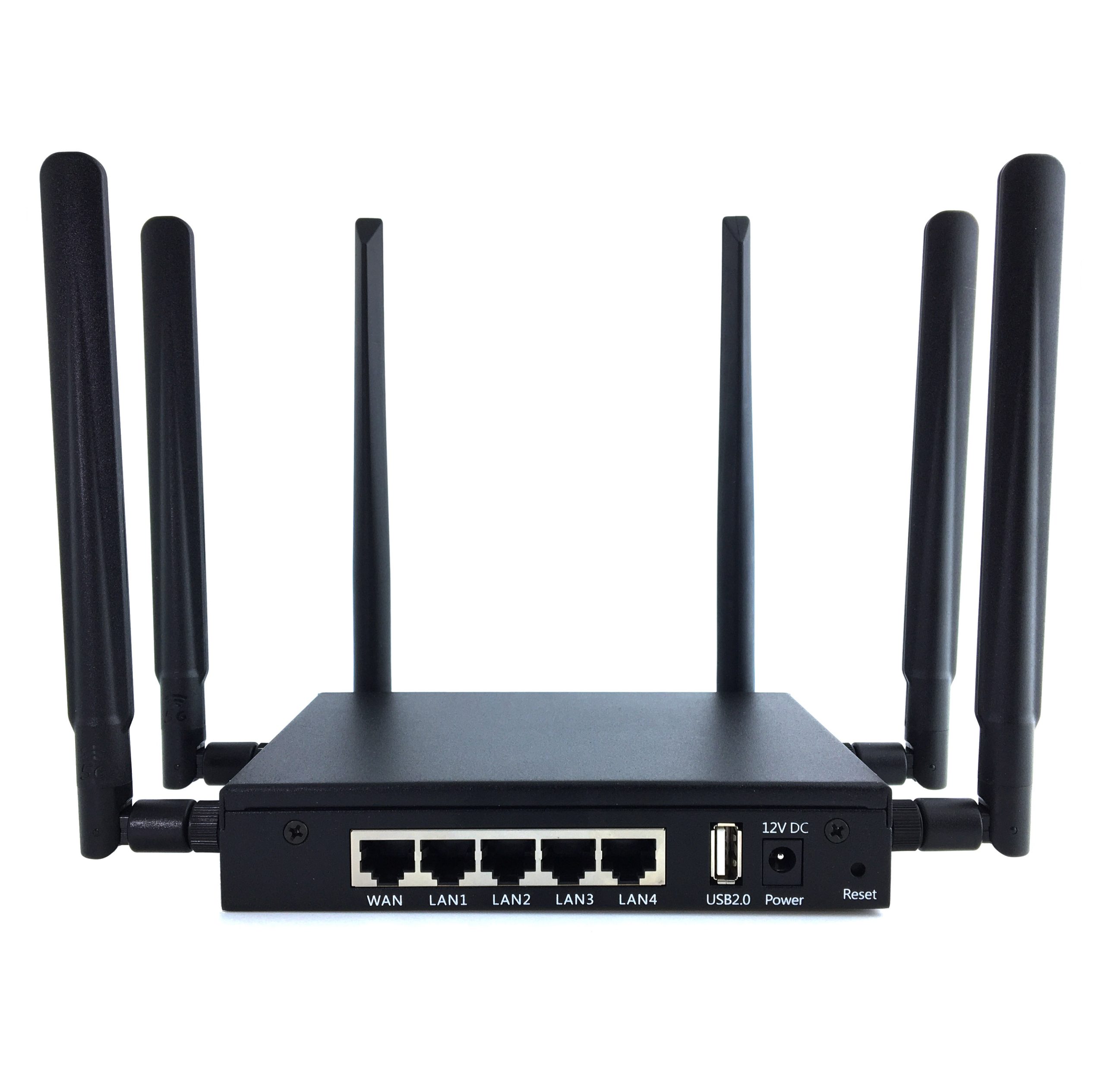

AX1800 Dual Band Gigabit Wi-Fi 6 Router with One Sim 4G/5G Module_U7621-01-AX

Highlight Features

  • Dual-core MIPS1004K(880MHz)
  • Optional LTE /5G application
  • Low Cost Wi-Fi 6 AX1800 platform
  • Industry iron case with removable SMA antennas
  • Support latest OpenWrt
ASK FOR QUOTE
Name *
Email *
Enter enquiry subject *
Message *

Specifications

Chipset CPU: MTK MT7621A dual-core MIPS1004K (880MHz) WIFI6: MTK7975DN+MTK7905DAN
System Memory Default DDR3 256Mbyte (Optional 512Mbyte)
Nor Flash Default 16Mbyte (Optional 8/32/64Mbyte)
Expansion 1x 4G/5G Module with a SIM card 1x USB2.0 connector 1x TF Card Slot
Wireless  MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 574Mbps, B mode@21dBm(Max) 5.8GHz 2T2R 1201Mbps, A mode@20dBm(Max)
Wired Interface 5x Gigabit 1*WAN+4*LAN(Auto MDI-X)
Reset Button 1x Factory Restore Button (GPIO)
DC Power 1x DC Jack Connector (Default 12V@1A)
Power Consumption 9 W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range
Software MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain Normal OpenWrt
Environmental Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case Material: Iron, Dimensions: 155x111x30mm

MT7621 Block Diagram

  AX1800 Dual Band Gigabit Wi-Fi 6 Router with One Sim 4G/5G Module_U7621-01-AX

Board Block Diagram

AX1800 Dual Band Gigabit Wi-Fi 6 Router with One Sim 4G/5G Module_U7621-01-AX

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@www.uiotin.com for more detailed info.

Name Customization Comments UniElec Customization
Memory Change to 512Mbyte DDR3 Supported
Nor Flash Change to 8/32/64Mbyte Supported
4G/5G Module Select the right M2 4G/5G module for your application Supported
Case Select the different case material for your application Supported

Ordering Information

Models Comments
U7621-01-AX 16Mbyte Nor Flash and 256Mbyte DDR3 RAM
