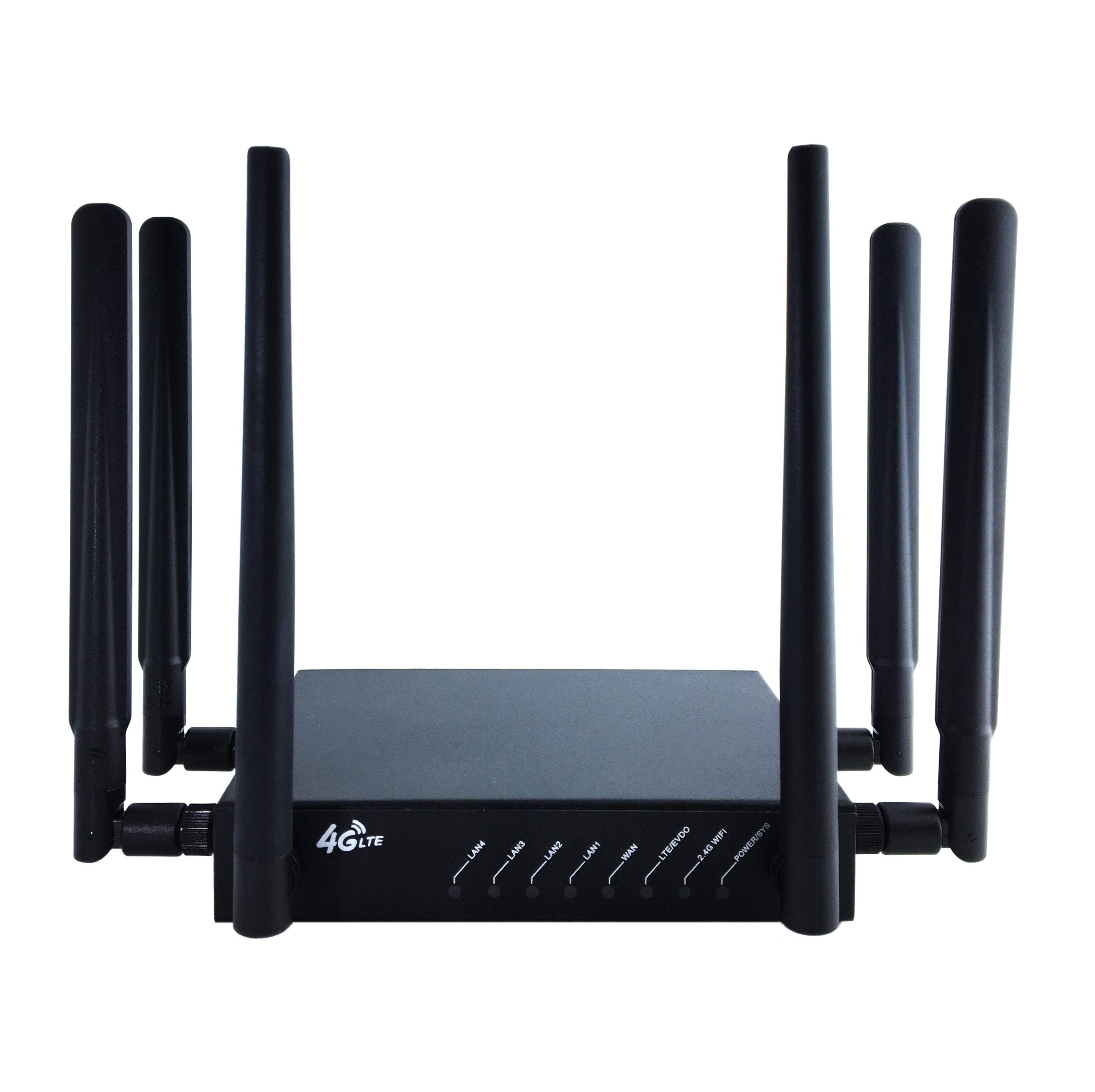

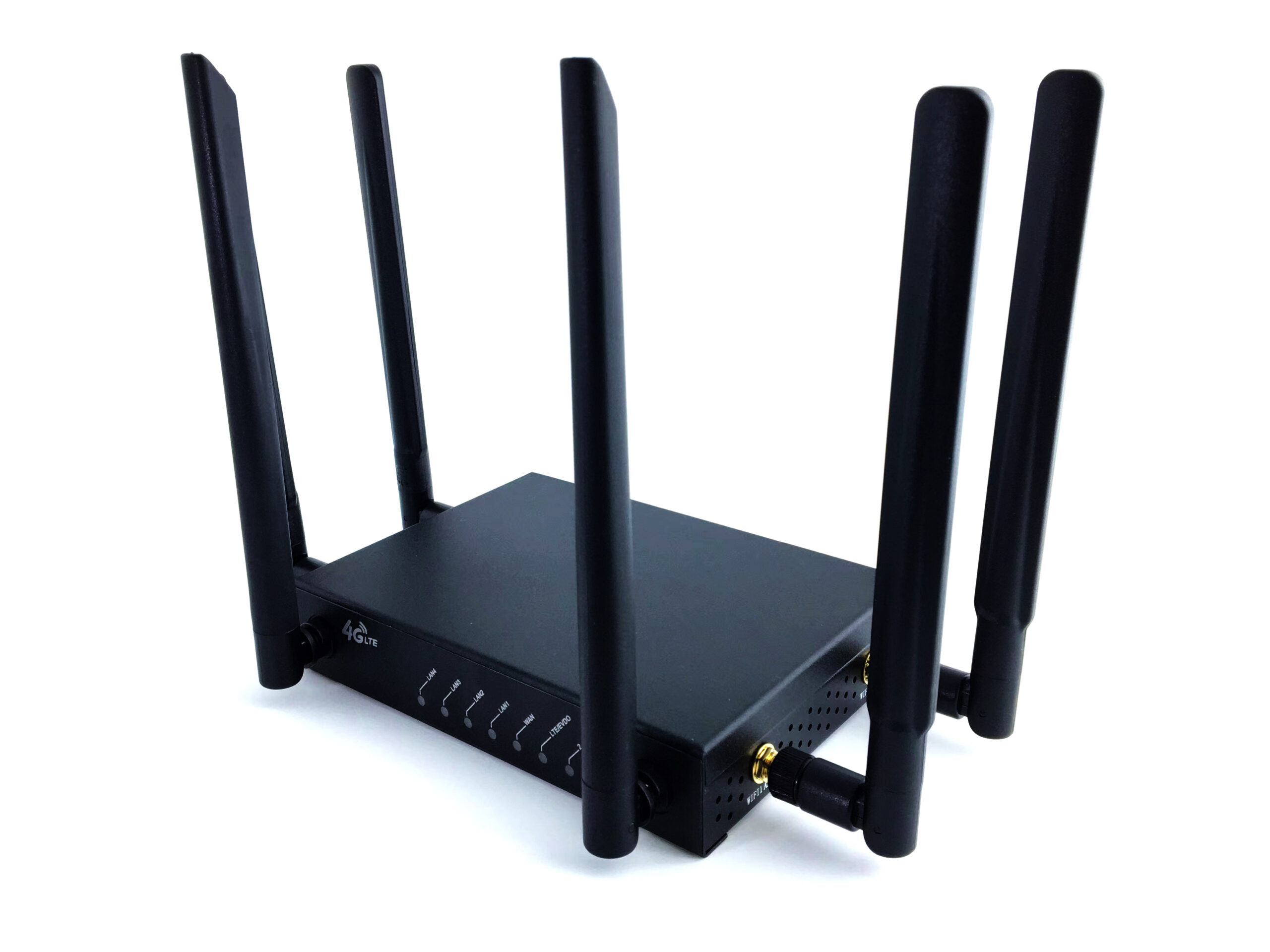

AX3000 Dual Band Gigabit Wi-Fi 6 Router_U7981-01-AX

Specifications

Chipset	CPU: MTK MT7981 dual-core ARM® Cortex-A53 WIFI6: MT7976C 5 Giga-PORT Switch: MT7531A
System Memory	Default DDR3 256Mbyte (Optional 512Mbyte)
Nor Flash EMMC NAND Flash	Default 16Mbyte (Optional for 8/32/64Mbyte) Optional 8Gbyte EMMC Optional 128Mbyte/256Mbyte NAND Flash
Expansion	1x 4G/5G Module with a SIM card 1x USB TYPEA connector for power only
Wireless	MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 576Mbps, B mode@23dBm(Max) 5.8GHz 3T3R 2.4Gbps, A mode@23dBm(Max)
Wired Interface	5x Gigabit 1*WAN+4*LAN
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	9 W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Iron, Dimensions: 155x111x30mm

MT7981 Block Diagram

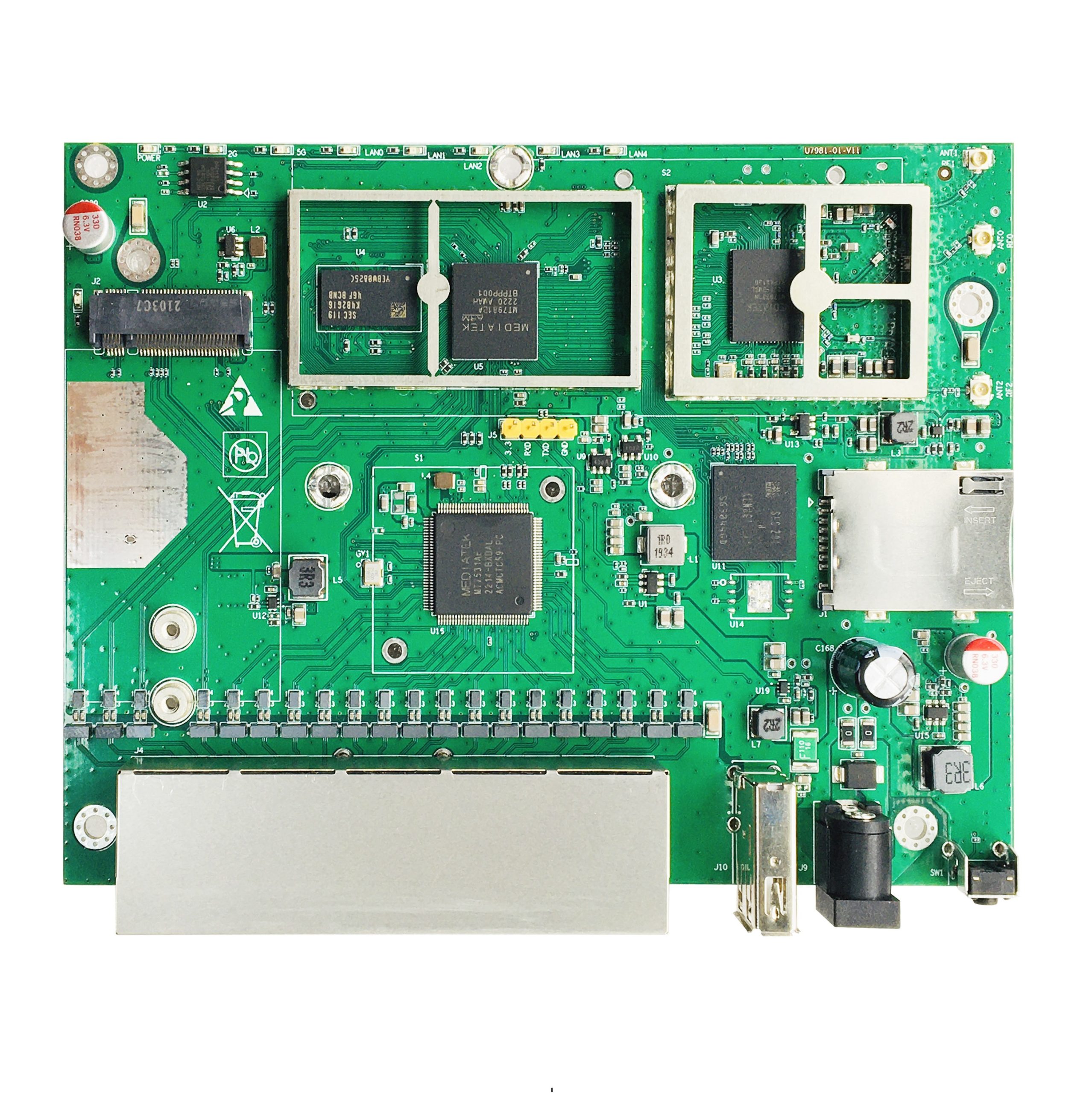

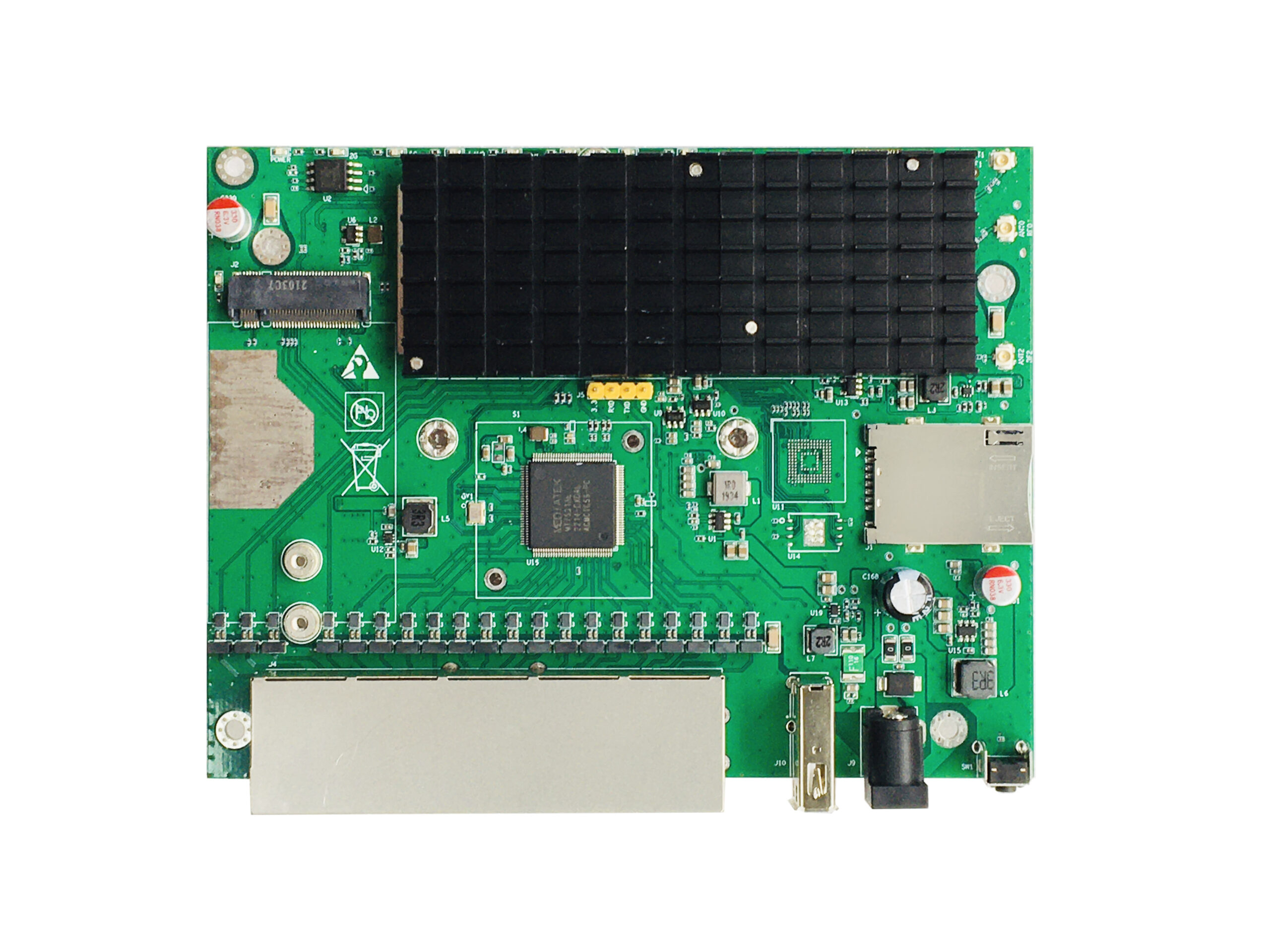

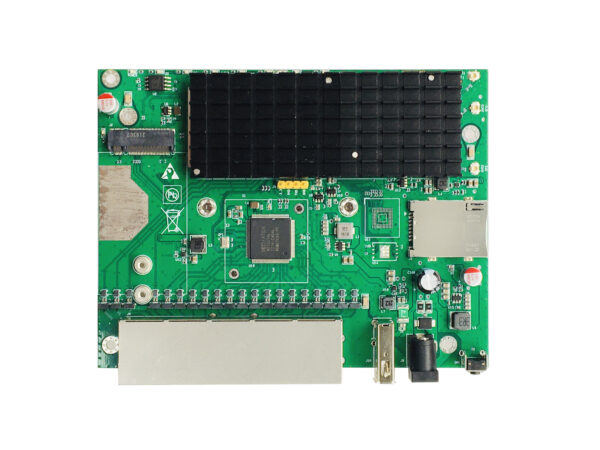

Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name	Customization Comments	Uiotin Customization
Memory	Change to 512Mbyte DDR3 Change to 512Mbyte/1Gbyte/2Gbyte DDR4	Supported
Nor Flash	Change to 8/32/64Mbyte	Supported
EMMC	Change to 8Gbyte EMMC	Supported
NAND Flash	Change to 128Mbyte/256Mbyte NAND Flash	Supported
4G/5G Module	Select the right M2 4G/5G module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U7981-01-AX	16Mbyte Nor Flash and 256Mbyte DDR3 RAM
