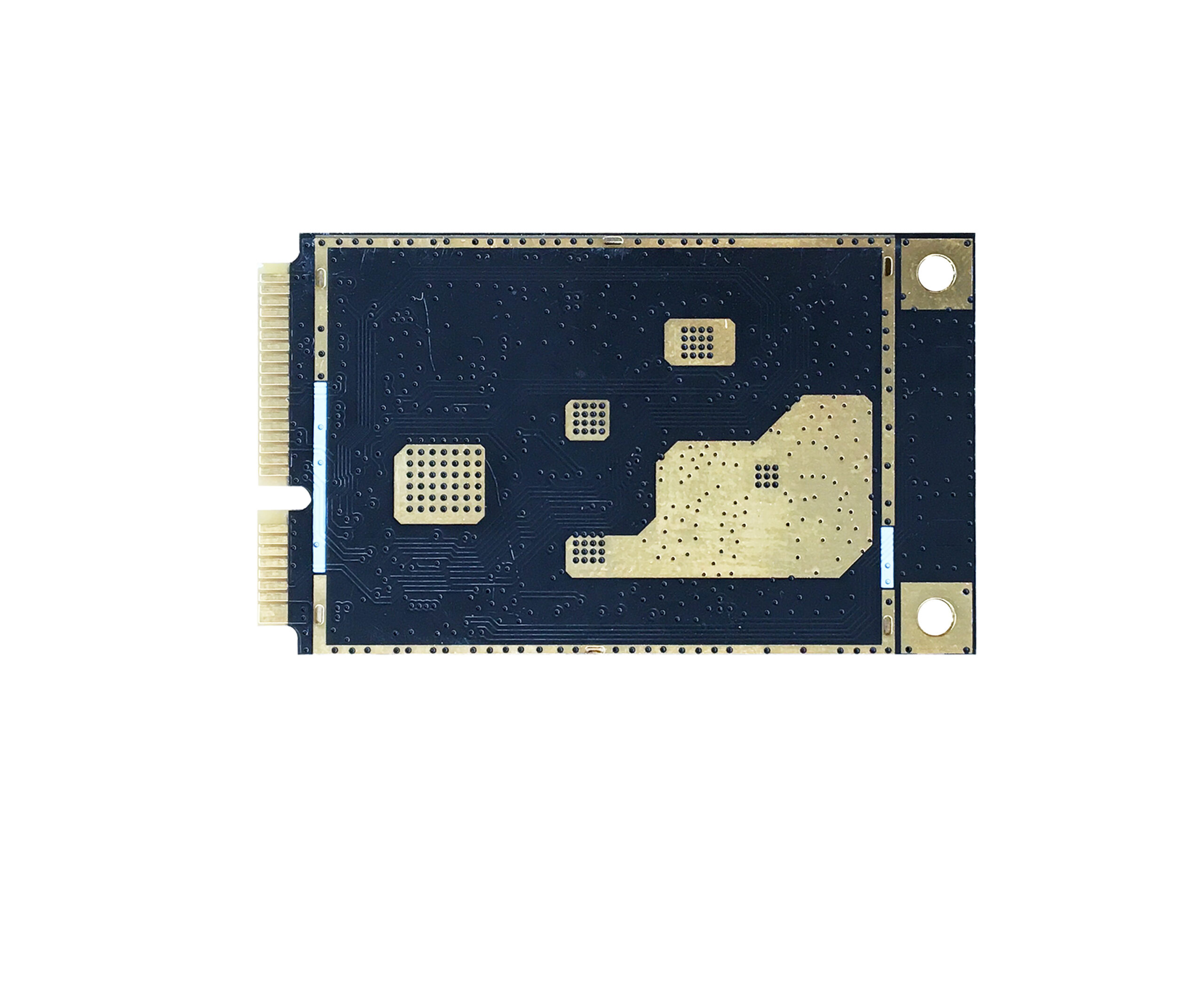

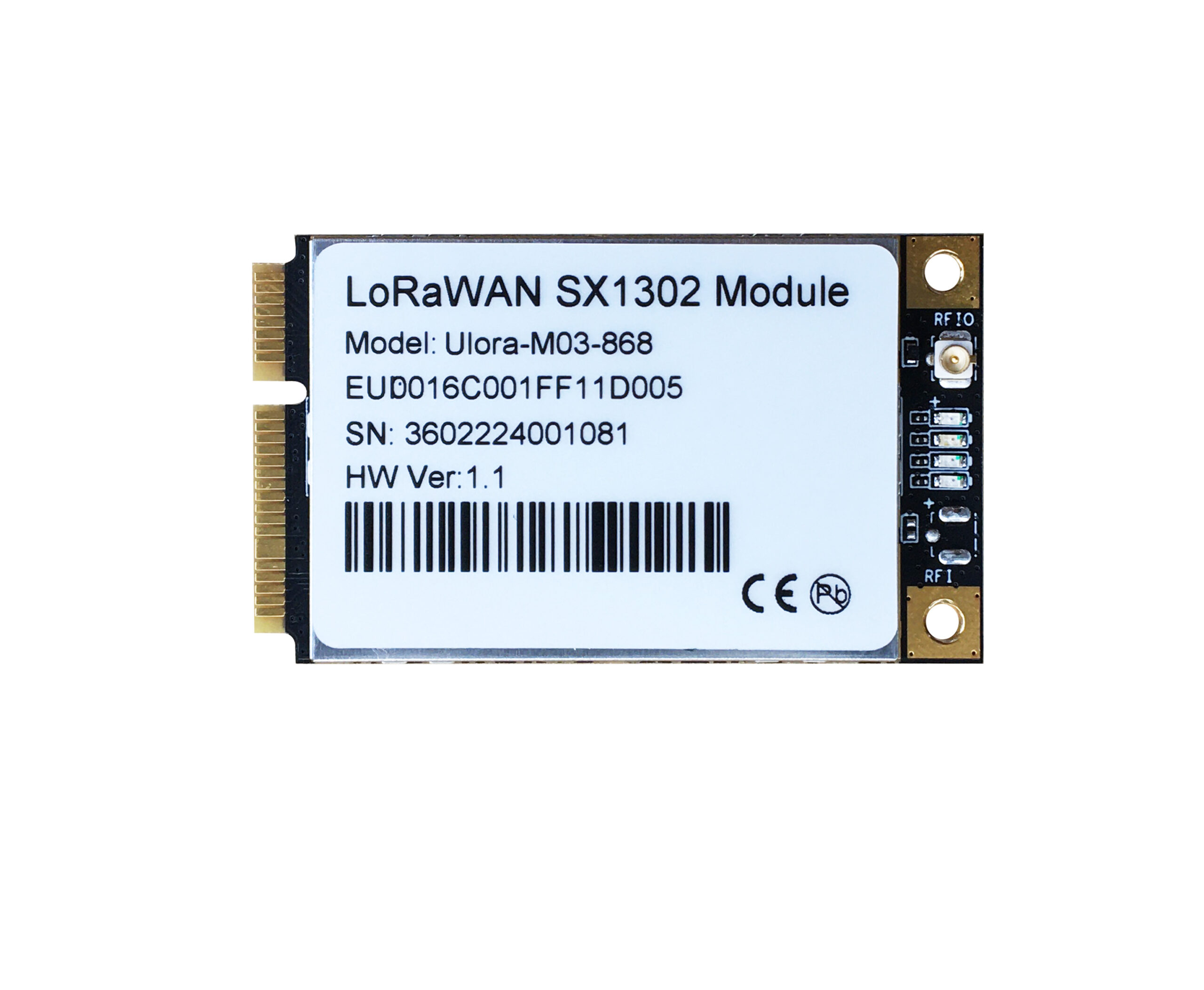

Lora Module_Ulora-M03

Specifications

Chipset	CPU: SX1302
Power consumption	Tx(max): 360mA Rx:60mA Idle: 27mA
Frequency range	868MHz
RX Sensitivity	SF5 -121dBm, BW 125KHz SF7 -127dBm, BW 125KHz SF12 -141dBm, BW 125KHz
PCIE	Standard MimiPCIE form factor with 52pin
Power	DC3.3V±5%
Host Interface	SPI
LEDs, Red	TX, RX
Environmental	Temperature: Operating: -40ºC to 85ºC
Module Size	L*W = 51*30mm（±0.2mm）

ULoRa Module Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Ordering Information

Models	Comments
Ulora-M03-868	868MHz
