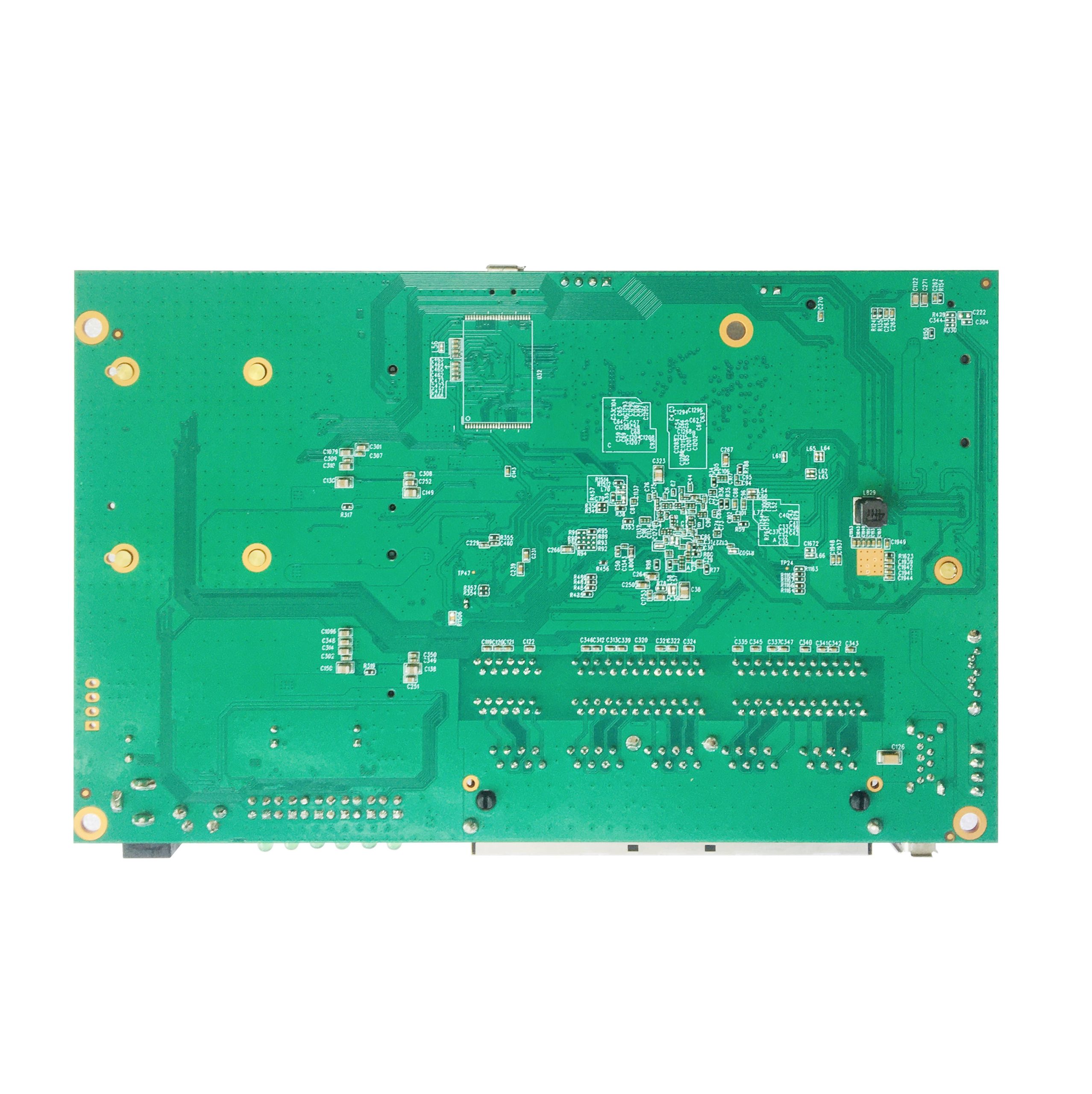

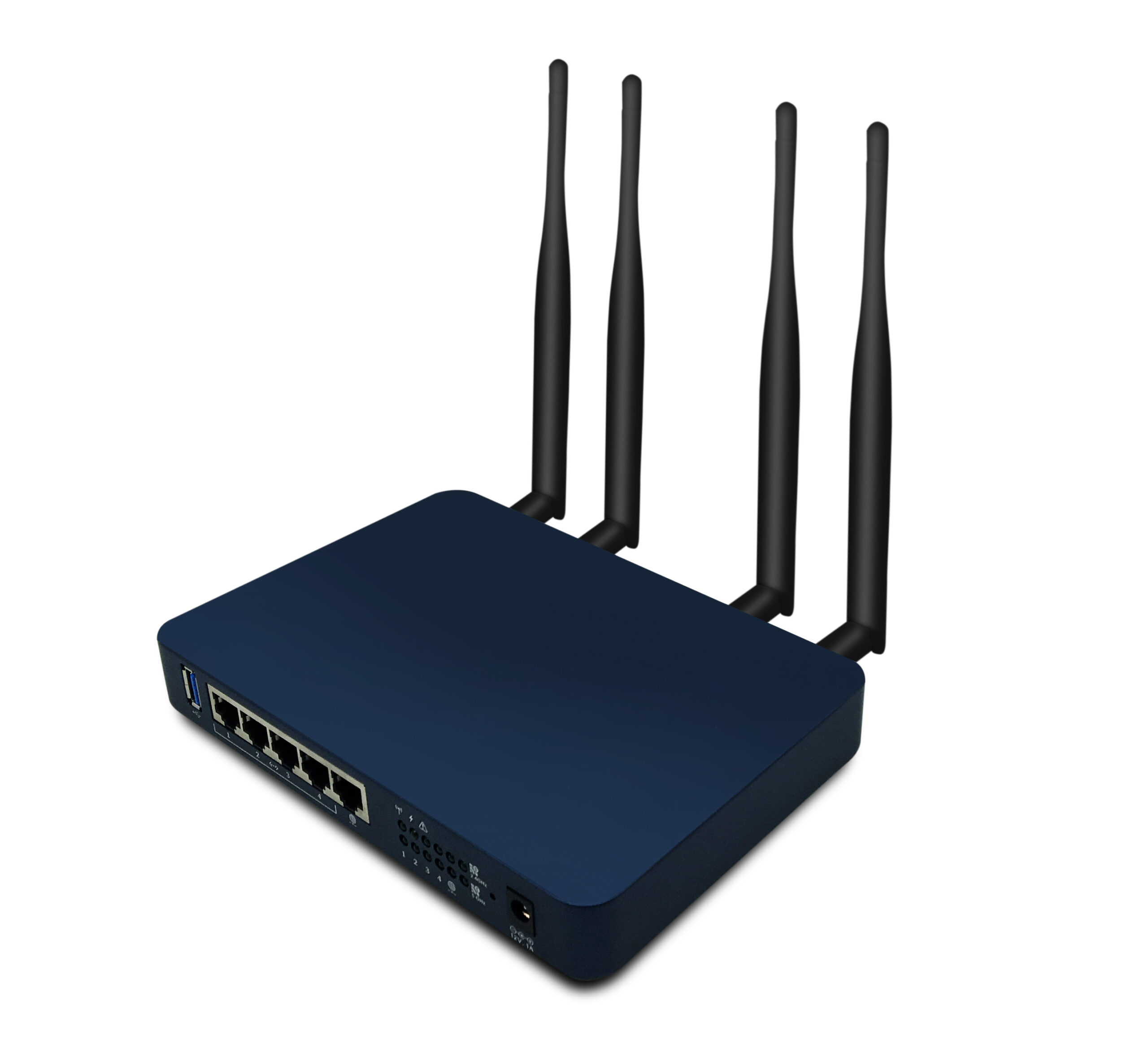

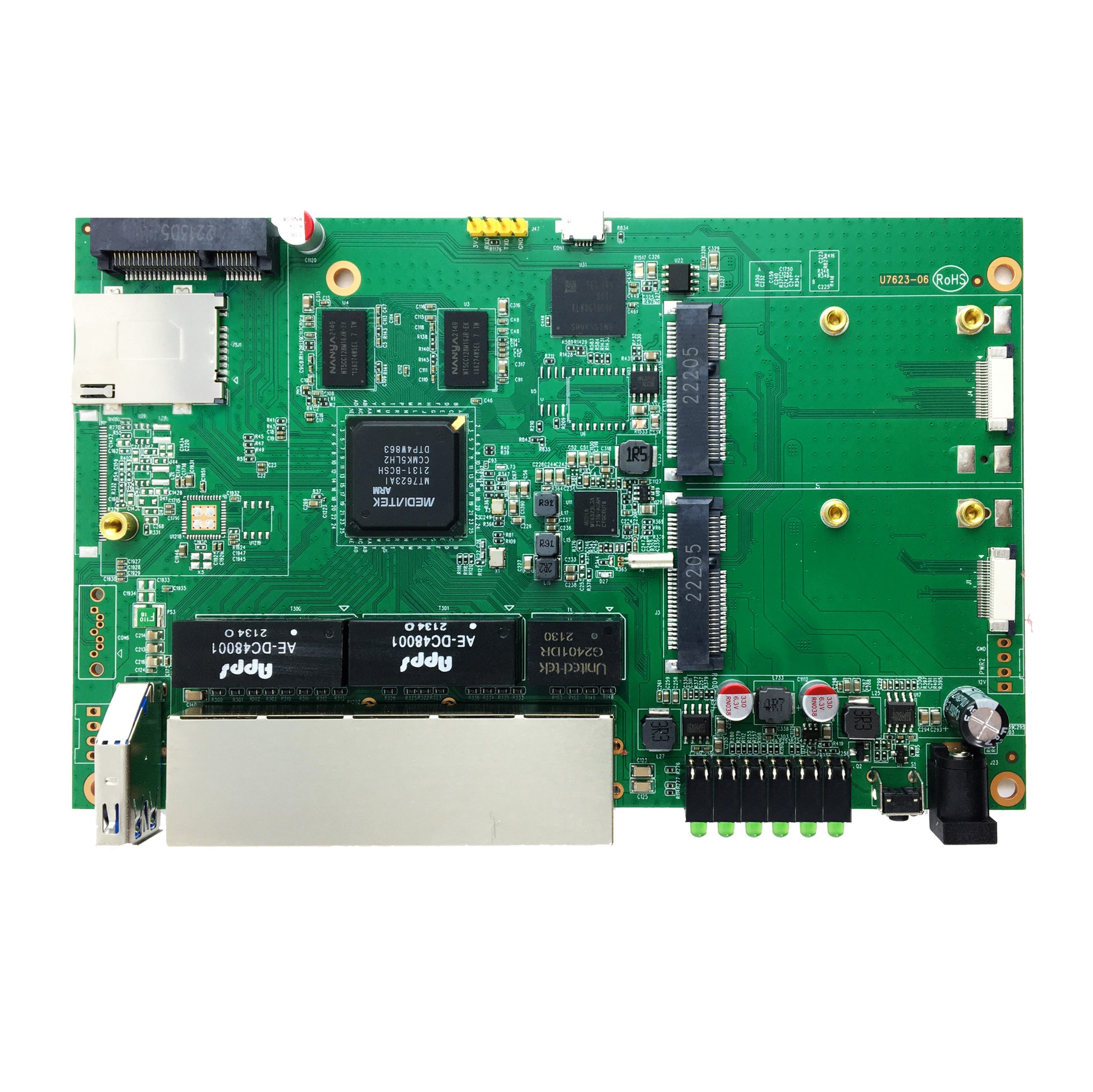

Quad-core ARM Dual Band Gigabit Wi-Fi Router with One Sim 4G Module_U7623-06

Specifications

Chipset	CPU: MTK MT7623A Quad-core ARM® Cortex-A7 (1.3GHz)
System Memory	Default DDR3 32Bit 1600Mbps 512Mbyte (Optional 1G/2Gbyte)
EMMC	EMMC4.5: Default 8Gbyte (Max 128Gbyte)
PCIE	2x MiniPCIE for 11AC or 11N WIFI module 1x MiniPCIE connector for LTE or MSATA module
Expansion	1x Serial Debug Port 4 Pin Connector1 1x USB3.0 Connector 1x 40P*0.5mm FPC for MIPI LCD
Wired Interface	5x Gigabit 1*WAN((Auto MDI-X)+4*LAN
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	9.5 W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain Normal OpenWrt
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

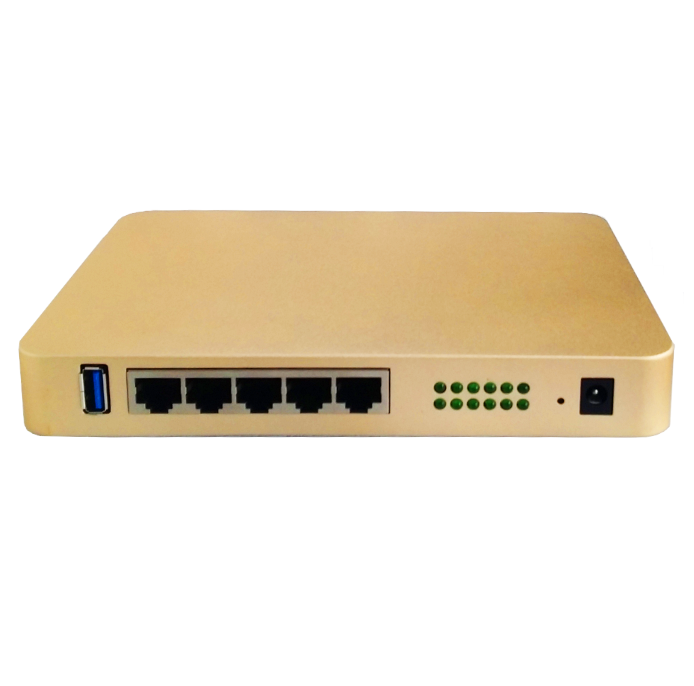

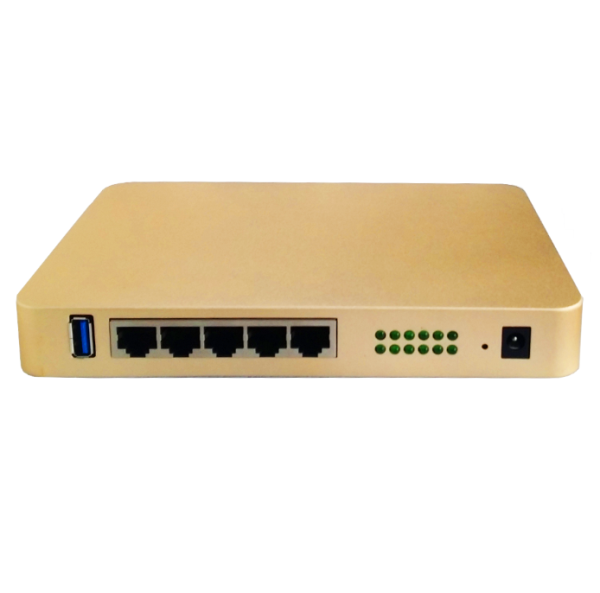

Case	Material: Aluminum Alloy, Dimensions: 189x129x25 mm

MT7623A Block Diagram

Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name	Customization Comments	Uiotin Customization
Memory	Change to 1Gbyte/2Gbyte DDR3	Supported
EMMC	Change to 128Gbyte EMMC	Supported
4G Module	Select the right PCIE 4G module for your application	Supported
WIFI Module	Select the right MiniPCIE WIFI module for your application	2T2R 11ac module [Half Card ]: U7612E-H1 2T2R 11n module Half Card]: U7603E-H1 4T4R 11ac Wave2 [Large Card]: U7615N-L3
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U7623-06	8Gbyte EMMC and 512Mbyte DDR3 RAM
