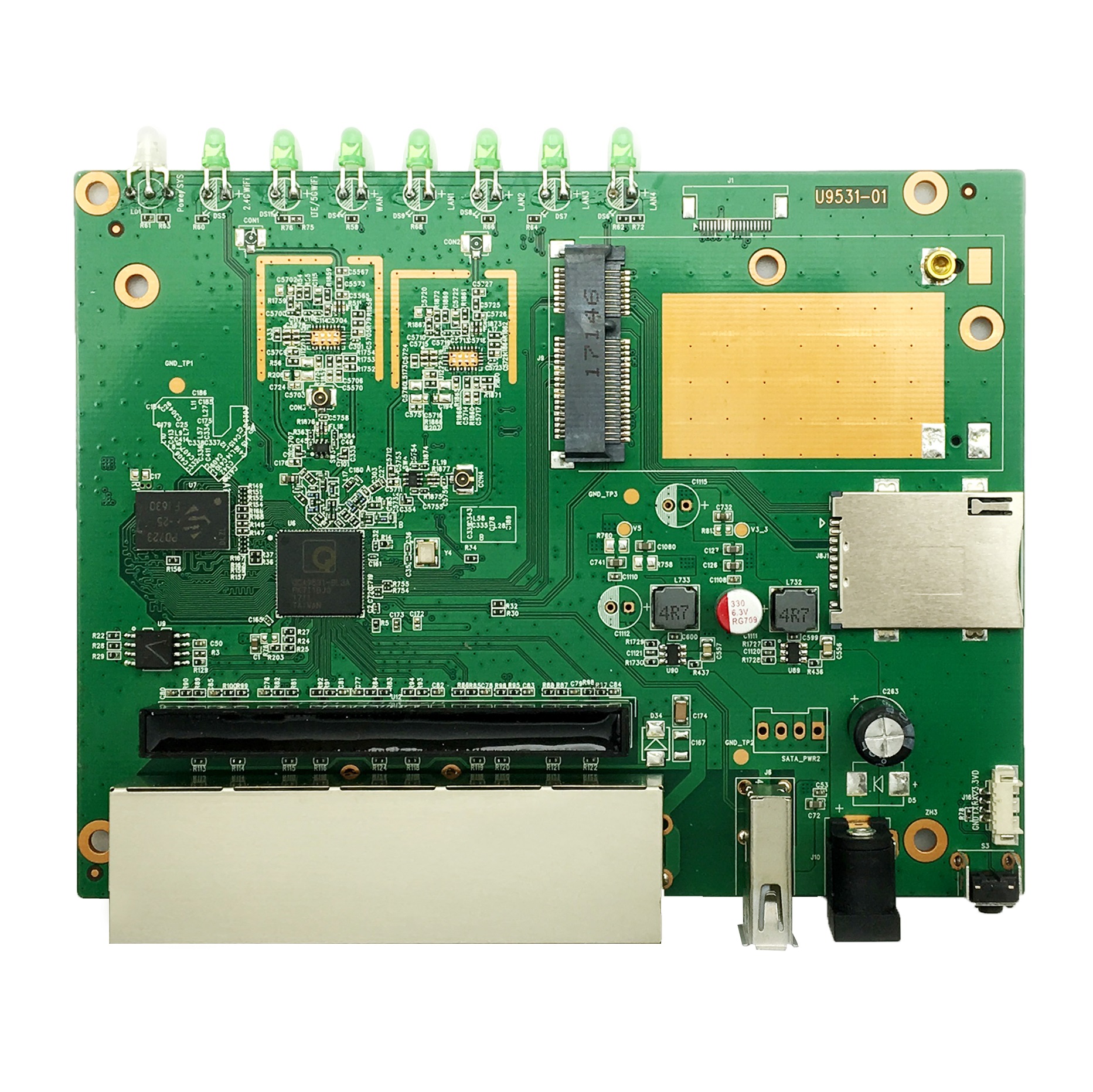

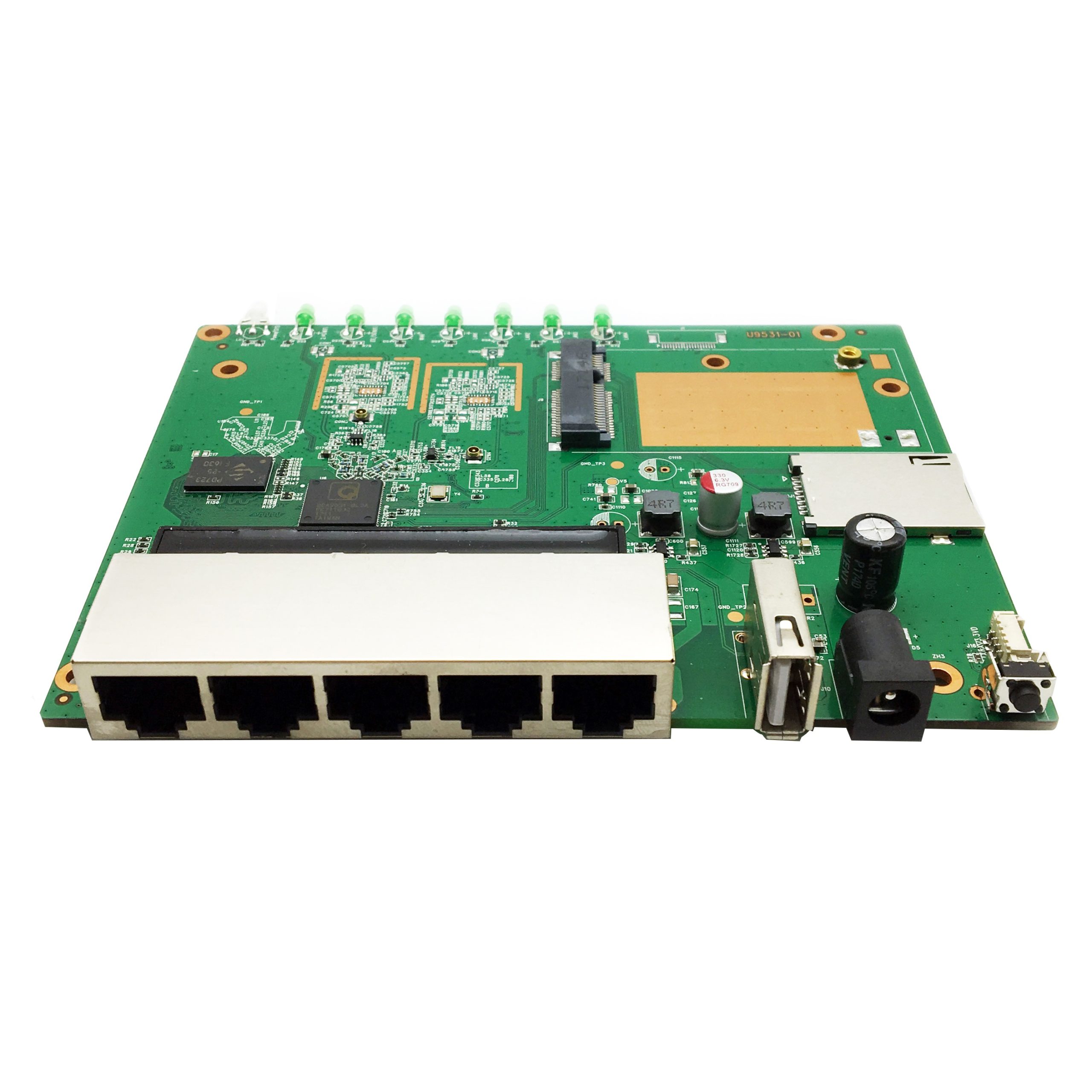

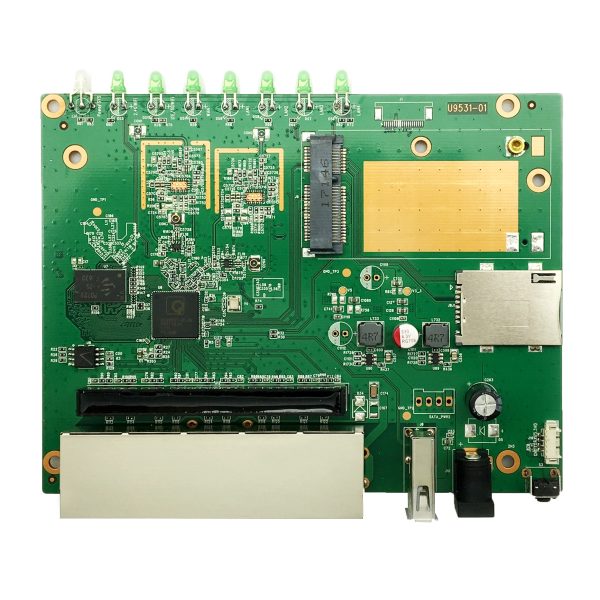

Wireless Router with One Sim 4G Module_U9531-01

Specifications

Chipset	CPU: Qualcomm QCA9531
System Memory	Default DDR2 128Mbyte (Optional 64Mbyte)
Nor Flash	Default 16Mbyte (Optional 8Mbyte)
Expansion	1x 4G/3G Module with a SIM card 1x USB TYPEA connector for power only
Wireless	2.4GHz 2T2R 300Mbps, B mode@16dBm(Max)
Wired Interface	5x 100Mbps 1*WAN+4*LAN(Auto MDI-X)
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@0.5A)
Power Consumption	6W(Max), 12V@0.5A without Expansion 12W(Max), 12V@1A in full range
Software	Qualcomm QSDK which includes Uboot, Kernel, Driver and Tool Chain
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

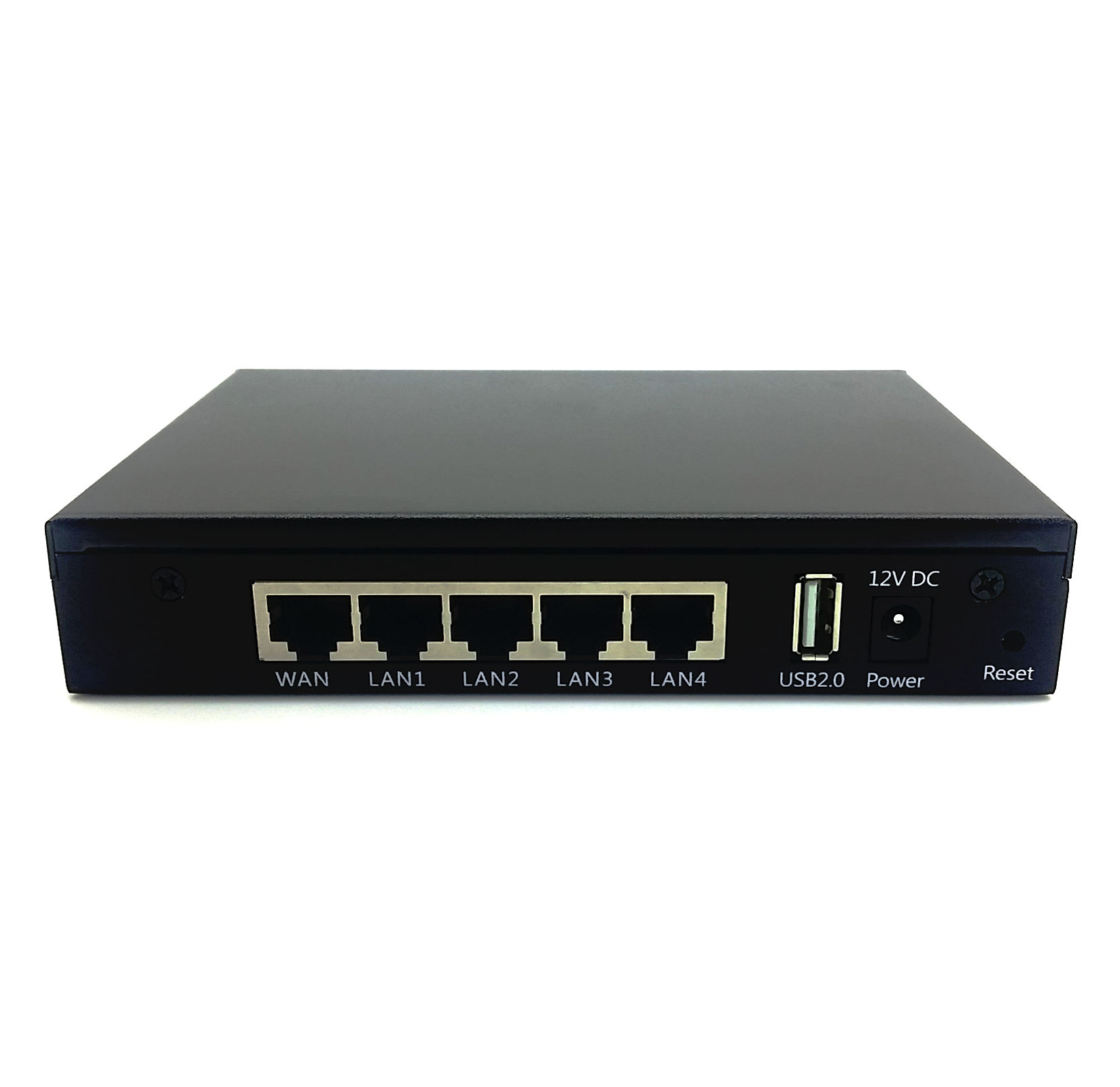

Case	Material: Iron, Dimensions: 155x111x30mm

QCA9531 Block Diagram



Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name	Customization Comments	Uiotin Customization
Memory	Change to 64Mbyte DDR2	Supported
Nor Flash	Change to 8Mbyte	Supported
LTE/3G Module	Select the right MiniPCIE LTE/3G module or 11AC WIFI module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U9531-01	16Mbyte Nor Flash and 128Mbyte DDR2 RAM
